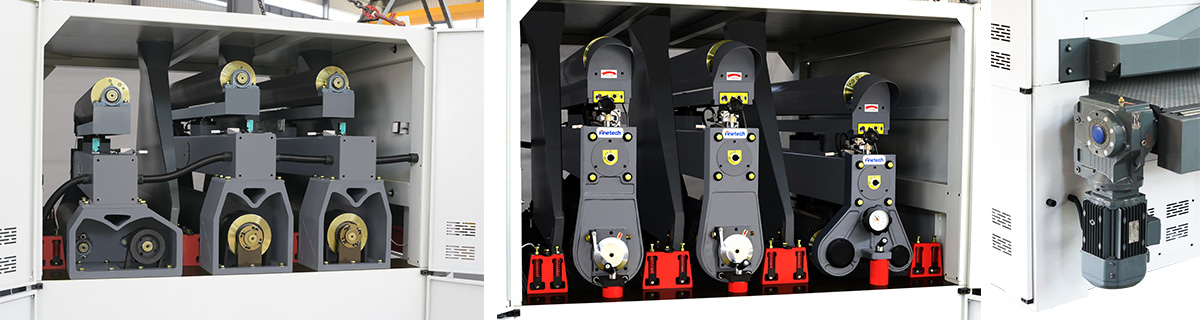

The hanging plate and beam base are made of castings with good stability and low noise.
German P+F photoelectric switches control abrasive belt oscillating.
Tapered sleeve pulley, compact structure and convenient installation.
Worm gear lifting motor, stable, powerful and accurate lifting.
| 技術(shù)參數(shù) | Technical Specification | SR- R- RP1300 | SR- R- RP1000 | SR- R- RP700 |
|---|---|---|---|---|
| 最大加工寬度 | Max working width | 1300mm | 1000mm | 700mm |
| 最短加工長度 | Min working length | 530mm | 491mm | 491mm |
| 加工厚度 | Working thinkness | 2-110mm | 2-160mm | 2-160mm |
| 輸送速度（變頻調(diào)速） | Feeding speed | 5-30m/min | 5-30m/min | 5-30m/min |
| 砂帶尺寸 | Abrasave belt size | 1330×2200mm | 1030×2000mm | 730×1900mm |
| 總功率 | Total Moter power | 91.92KW | 47.44KW | 39.94KW |
| 工作壓力 | Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 壓縮空氣消耗量 | Air consumption | 12m3 /h | 12m3 /h | 9m3 /h |
| 吸塵量 | Volume of dust collection device | 13700m 3 /h | 13700m 3 /h | 8500m 3 /h |
| 外形尺寸 | Overall dimensions | 2036×2841×2150mm | 1663×2544×1980mm | 1363×2544×1980mm |
| 重量 | Net weight | 5600kg | 4200kg | 3000kg |
